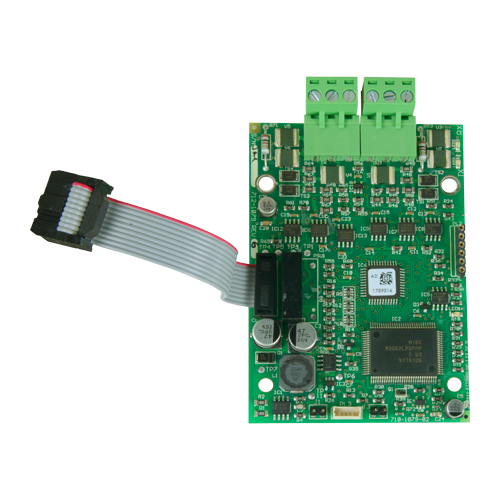

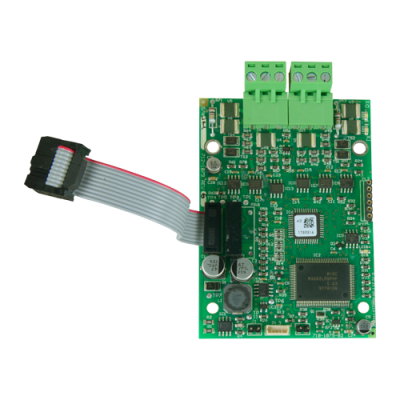

Advanced MXP-509 Fault Tolerant Network Card for MxPro 5

Advanced MXP-509 Fault Tolerant Network Card for MxPro 5. The Ad-NeT network system enables seamless integration of MxPro 5 control panels, remote terminals, and network peripherals, all connected via standard fire-resistant two-core cable. This system delivers the advantages of distributed intelligence while reducing installation costs. It supports everything from a small two-panel setup to a large-scale 200-panel network.

Operating as a true peer-to-peer system, the Ad-NeT network facilitates the exchange of information between any input or output device, which can be displayed on any MxPro 5 panel or remote terminal. Simply adding a network card instantly connects any MxPro 5 control panel or remote terminal to the network. Once assigned a valid network node address, the new panel becomes visible to the entire system, allowing for easy future expansions.

All panels come with built-in diagnostic features and a network analyzer, providing essential status and fault information. During commissioning, the system can prevent the transmission of fire or fault signals, ensuring a smooth setup process.

For more complex installations, the PC-NeT Mx configuration software allows detailed sector-based programming. This includes controls for Mute, Silence, Resound, Reset, and other actions like investigation delays, group disablements, and test instructions. Each panel within the same sector shares common control features, while panels and remote terminals can be programmed to display specific network information on a zonal level. The cause and effect functionality allows any input device to trigger any output device on any panel.

Key Features

• Supports large Ad-NeT+ 200 Panel Networks
• Up to 1.5 km cable distance between control panels
• Easy setup via Windows-based PC
• Network systems support up to 1000 zones
• Network analysis available directly from control panels
• Utilizes standard networking protocols

The network supports up to 32 nodes (50 with a signal buffer), and the total cable length can reach up to 1.5 km.

Fault Tolerant Network

• Maximum cable distance of 1.5 km between nodes, with a total loop length of 20 km
• Each network card includes built-in diagnostics, capable of monitoring both short and open circuit faults between nodes
• Capable of sustaining a single fault between nodes without communication loss to any panel
• Supports up to 200 network nodes
