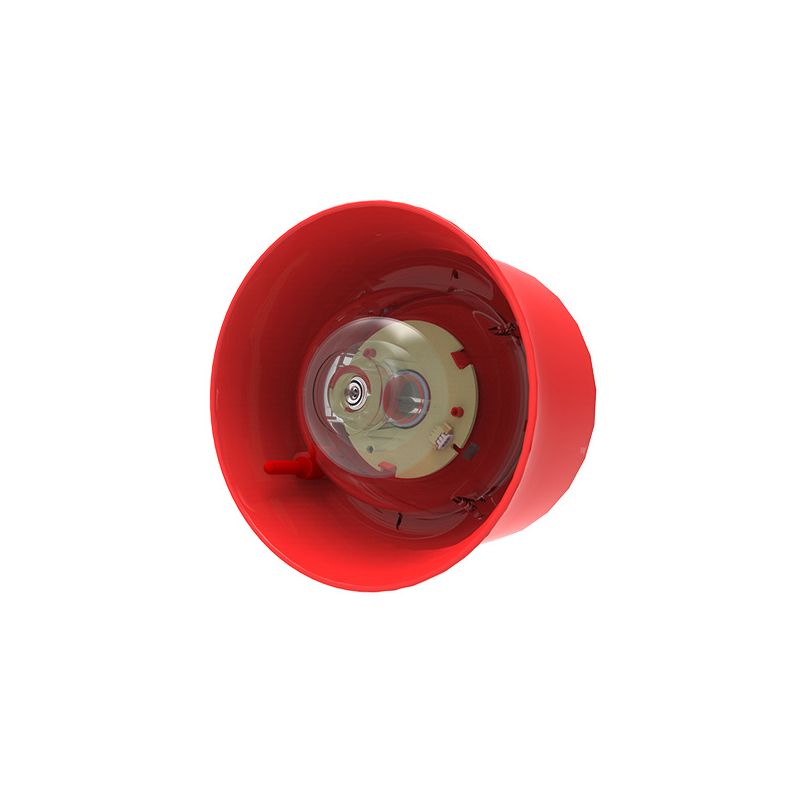

Wall Sounder Beacon – Red Case, Red LEDs

Model CHQ-WSB2 is an addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (?2dB(A)) with low current consumption. The unit features an integral beacon within the horn utilising high-intensity LED technology and is designed to fit to the Standard Base (CHQ-WPK) & YBOR/ SCI(WHT)) or the Isolator Base (YBO-R/SCI(RED) & YBO-R/SCI(WHT)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

Downloads:

CHQ-WSB2 Datasheet
